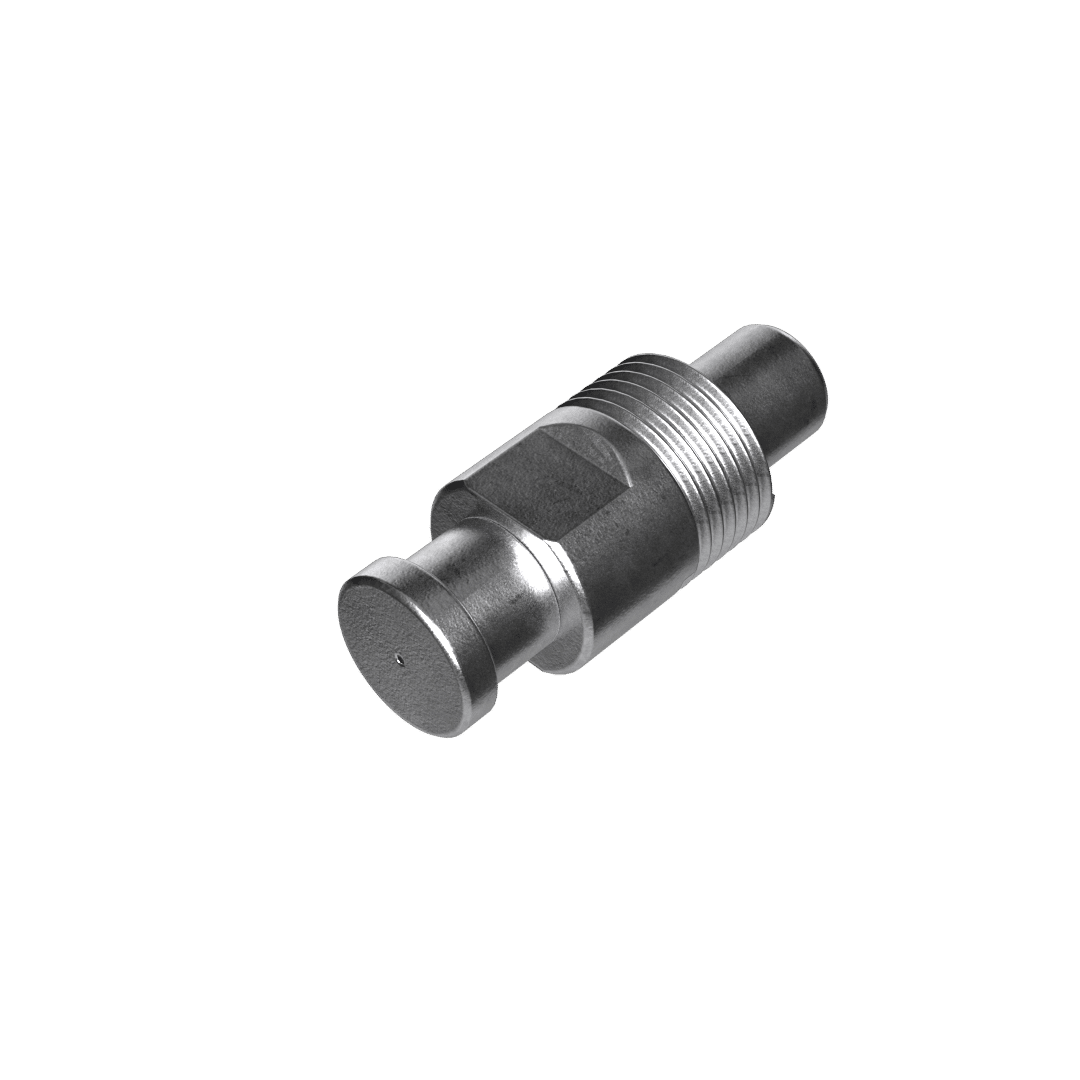

PTO Link™ HD System – Replacement Spring-loaded Locking Pin
The PTO Link® HD System - Tractor (Female) Coupler comes preinstalled with a Spring-loaded Locking Pin. This pin assembly engages with the Implement (Male) Coupler for the initial locking connection to prevent the two couplers from uncoupling.
Product Features:
• Includes Loctite® Threadlocker Red 271TM • Spring-loaded
• Stainless Steel
• Auto-lock and Easy-pull design when coupling and uncoupling the PTO Link® System • Dimensions: 2” L x 0.75” W (1/2” Threads)
• Weight: 2.4 oz; Shipping weight: 4 oz
IMPORTANT INSTRUCTIONS FOR REPLACEMENT:
• Remove the installed Locking Pin housing from the tractor coupler with vise-grips or 5/8” open-end wrench. Heat may need to be applied to the Locking Pin’s housing and coupler threads for removal.
• Apply Loctite® Threadlocker Red 271TM to the threads of the Tractor Coupler and the Locking Pin to prevent backing out.
• Wrench the replacement Locking Pin into the Tractor Coupler and torque it down.
• Wipe away excess Loctite® Threadlocker Red 271TM from the top and bottom of the Locking Pin.
IMPORTANT SAFETY NOTE: Always install the stand-alone PTO Link® HD System - Safety Plunger Pin (SLIC Pin TM) after connecting the PTO Link® System Couplers.
The PTO Link® HD System - Tractor (Female) Coupler comes preinstalled with a Spring-loaded Locking Pin. This pin assembly engages with the Implement (Male) Coupler for the initial locking connection to prevent the two couplers from uncoupling.
Product Features:
• Includes Loctite® Threadlocker Red 271TM • Spring-loaded
• Stainless Steel
• Auto-lock and Easy-pull design when coupling and uncoupling the PTO Link® System • Dimensions: 2” L x 0.75” W (1/2” Threads)
• Weight: 2.4 oz; Shipping weight: 4 oz
IMPORTANT INSTRUCTIONS FOR REPLACEMENT:
• Remove the installed Locking Pin housing from the tractor coupler with vise-grips or 5/8” open-end wrench. Heat may need to be applied to the Locking Pin’s housing and coupler threads for removal.
• Apply Loctite® Threadlocker Red 271TM to the threads of the Tractor Coupler and the Locking Pin to prevent backing out.
• Wrench the replacement Locking Pin into the Tractor Coupler and torque it down.
• Wipe away excess Loctite® Threadlocker Red 271TM from the top and bottom of the Locking Pin.
IMPORTANT SAFETY NOTE: Always install the stand-alone PTO Link® HD System - Safety Plunger Pin (SLIC Pin TM) after connecting the PTO Link® System Couplers.
The PTO Link® HD System - Tractor (Female) Coupler comes preinstalled with a Spring-loaded Locking Pin. This pin assembly engages with the Implement (Male) Coupler for the initial locking connection to prevent the two couplers from uncoupling.
Product Features:
• Includes Loctite® Threadlocker Red 271TM • Spring-loaded
• Stainless Steel
• Auto-lock and Easy-pull design when coupling and uncoupling the PTO Link® System • Dimensions: 2” L x 0.75” W (1/2” Threads)
• Weight: 2.4 oz; Shipping weight: 4 oz
IMPORTANT INSTRUCTIONS FOR REPLACEMENT:
• Remove the installed Locking Pin housing from the tractor coupler with vise-grips or 5/8” open-end wrench. Heat may need to be applied to the Locking Pin’s housing and coupler threads for removal.
• Apply Loctite® Threadlocker Red 271TM to the threads of the Tractor Coupler and the Locking Pin to prevent backing out.
• Wrench the replacement Locking Pin into the Tractor Coupler and torque it down.
• Wipe away excess Loctite® Threadlocker Red 271TM from the top and bottom of the Locking Pin.
IMPORTANT SAFETY NOTE: Always install the stand-alone PTO Link® HD System - Safety Plunger Pin (SLIC Pin TM) after connecting the PTO Link® System Couplers.
Coupler Connection Tip – When using the tractor’s freewheeling PTO feature, rotate the tractor coupler clockwise. If
only the implement turns, rotate the implement coupler counterclockwise. If both the PTO and implement turn, both
couplers can be rotated simultaneously.
